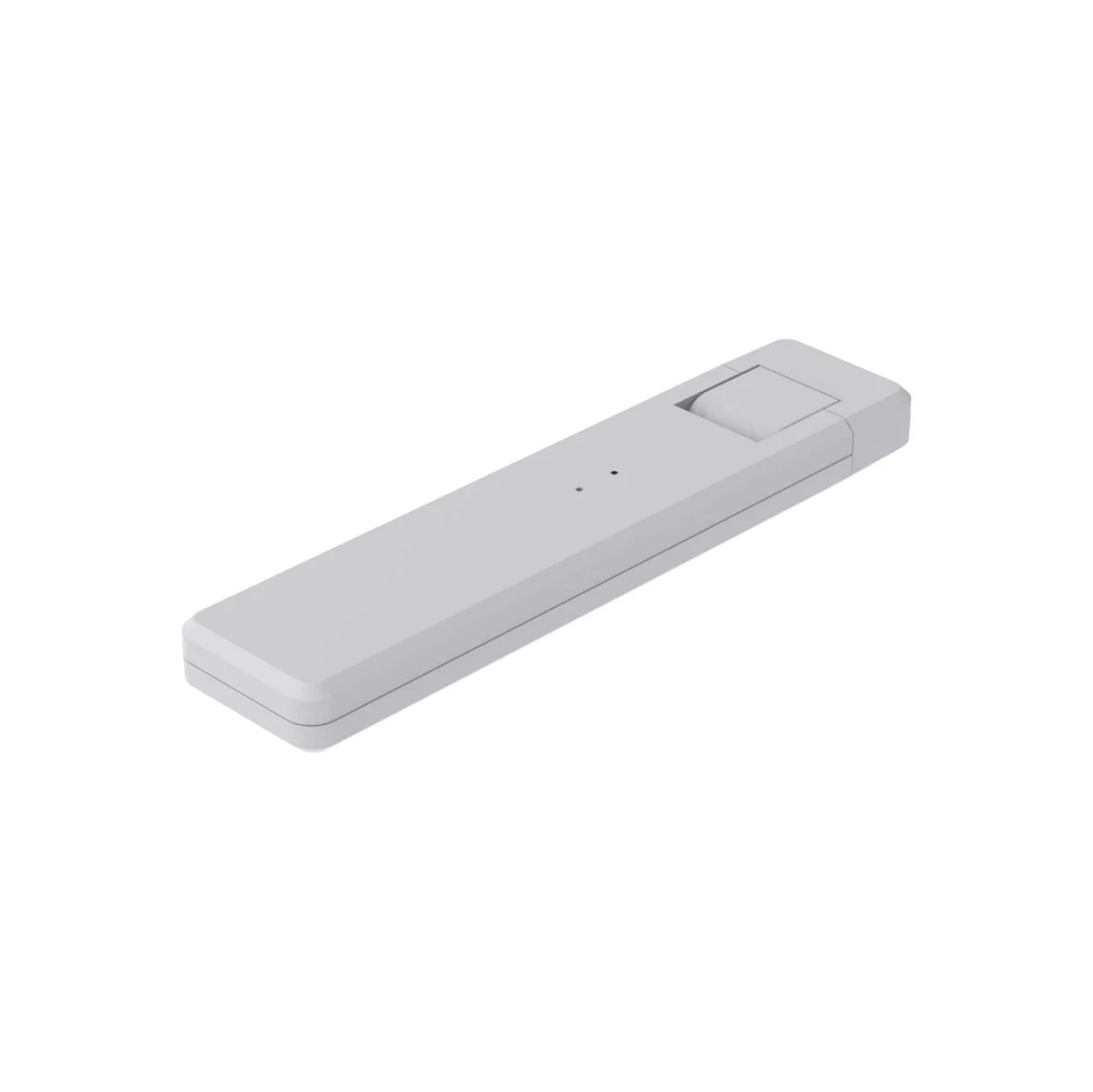

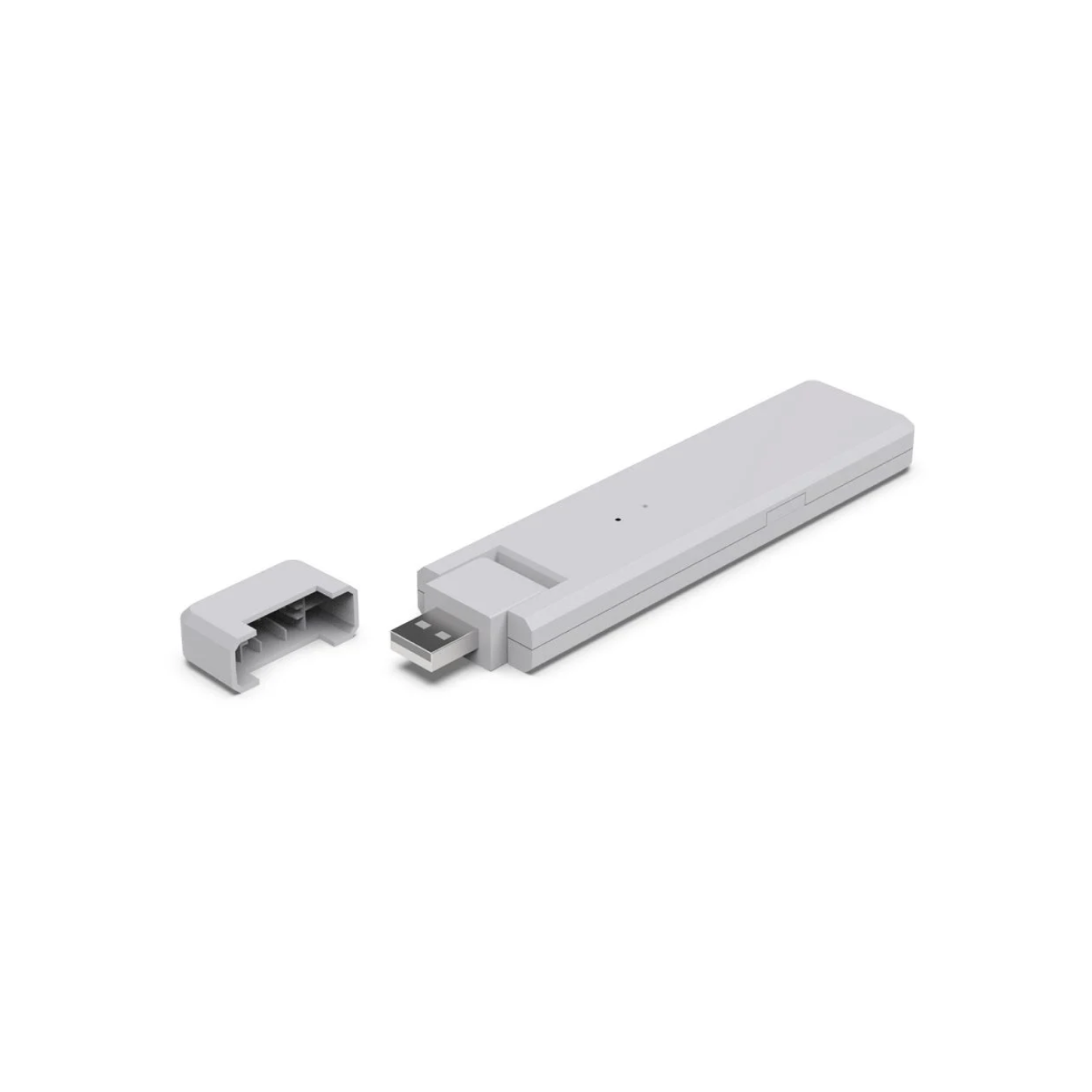

Hoymiles DTU WLite-S

The Hoymiles DTU-WLite-S is a data transmission unit that uses sub-1G wireless communication to collect information and data from PV microinverters and sends it to the S-Miles cloud and Hoymiles monitoring platform via Wi-Fi technology. Real-time monitoring allows you to keep an eye on everything and realize and store various data. The DTU is compatible with the Hoymiles HMS series.

About the DTU-WLite-S

• Sub-1G radio solution with micro inverter
• Plug and play
• Limited to 4 modules
• Lightweight and compact design
• Real-time microinverter data and alarm on S-Miles Toolkit
• Remote system management in the S-Miles Cloud
• Sampling rate: every 15min
• LED display
• Monitoring and data storage at module level, with up to 4 solar modules
• Warranty: 3 years

Technical Data

• Input voltage: 100-240V AC
• Power consumption: Type 1.0 W / max. 5.0 W
• Output voltage: 5V/2A
• Frequency: 50/60 Hz
• Ambient temperature range: -20°C - +55°C
• Type: Sub-1G
• Maximum distance (open area): 400m
• Signal - Wi-Fi: 802.11b/g/n
• Dimensions: 143 x 33 x 12.5 mm
• Certificate: CE
