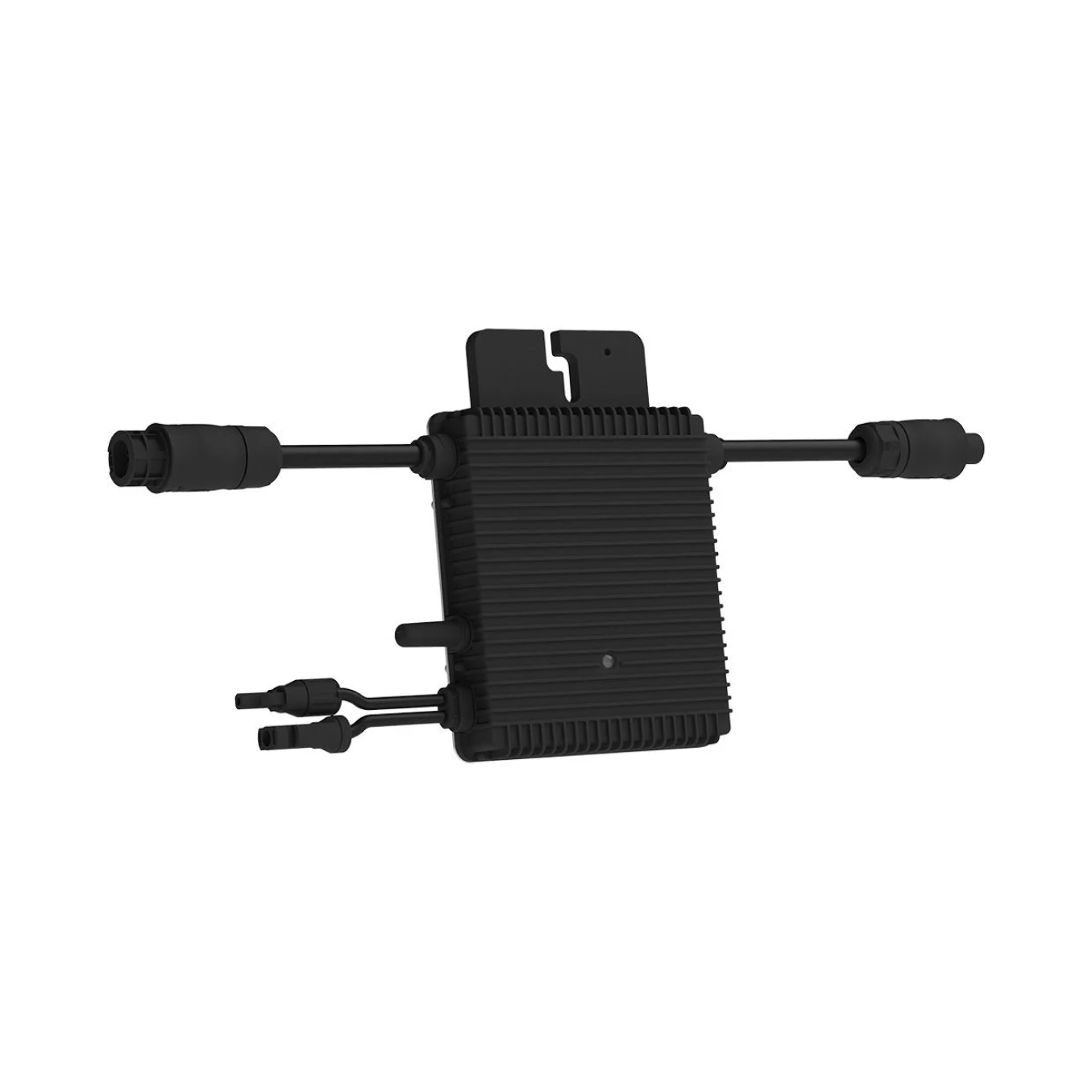

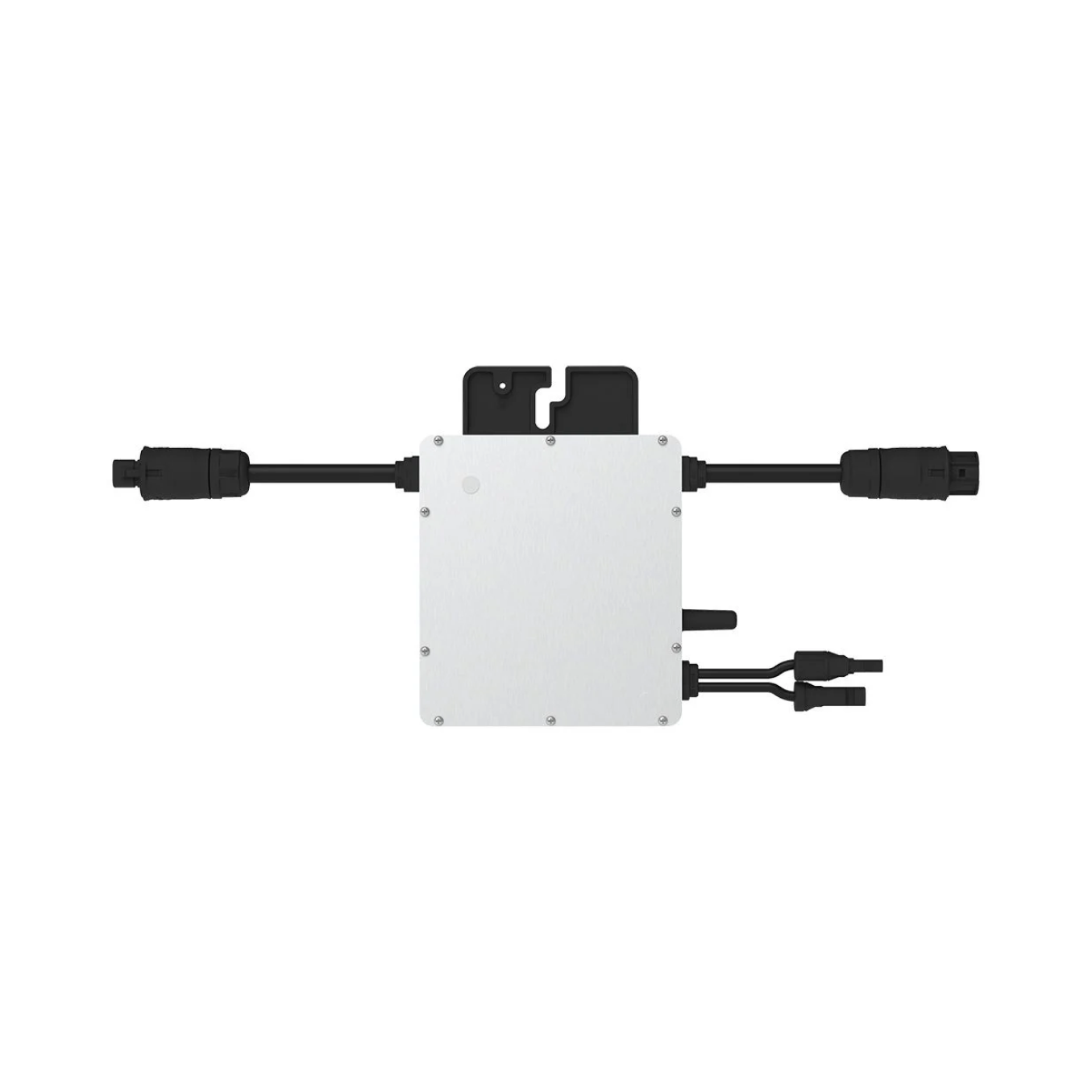

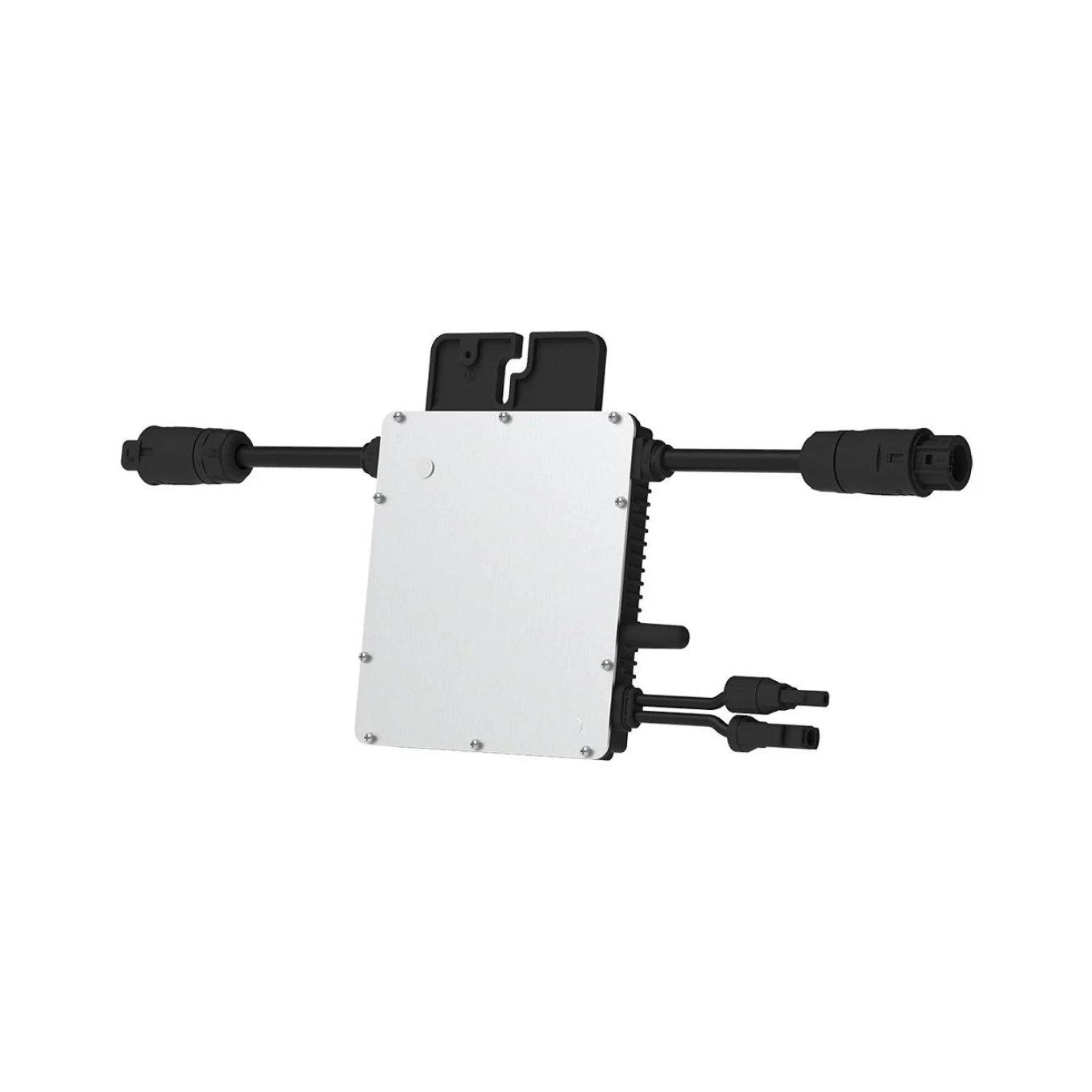

Hoymiles HM-400 Microinverter Module inverter

The HM-400 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 500 watts peak power. Just like all other micro inverters from Hoymiles, it is suitable for long operating hours and wide PV module applications, as its starting voltage is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide.

Technical data

• Recommended module power: up to 500W
• Peak power MPPT of the voltage range: 34~48V
• Starting voltage: 22V
• Operating voltage range: 16~60V
• Maximum input voltage: 60V
• Maximum input current: 12.5A
• Maximum input short circuit current: 15A
• Rated output power: 400VA
• Nominal output voltage: 1.74A at 230V
• Rated output current: 230V
• CEC-weighted efficiency: 96.50%
• Ambient temperature range: -40~+65°C
• Dimensions (WxHxD): 182 x 164 x 29 mm
• Weight: 1.98kg (including 1.35m AC cable)
• Housing rating: IP67

Properties

• Minimization of the effects of e.g. shading, dust or aging through MPPT
• High-quality energy generation with high MPPT accuracy
• Optimum system reliability
• Peak efficiency of 96.7%
• 12-year product warranty
• High level of safety thanks to integrated protective functions
• Easy installation
• Long service life
• 6000V surge protection
• Complies with VDE-AR-N 4105: 2018 & EN50549-1:2019
