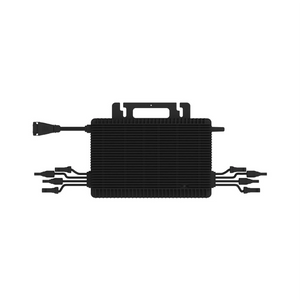

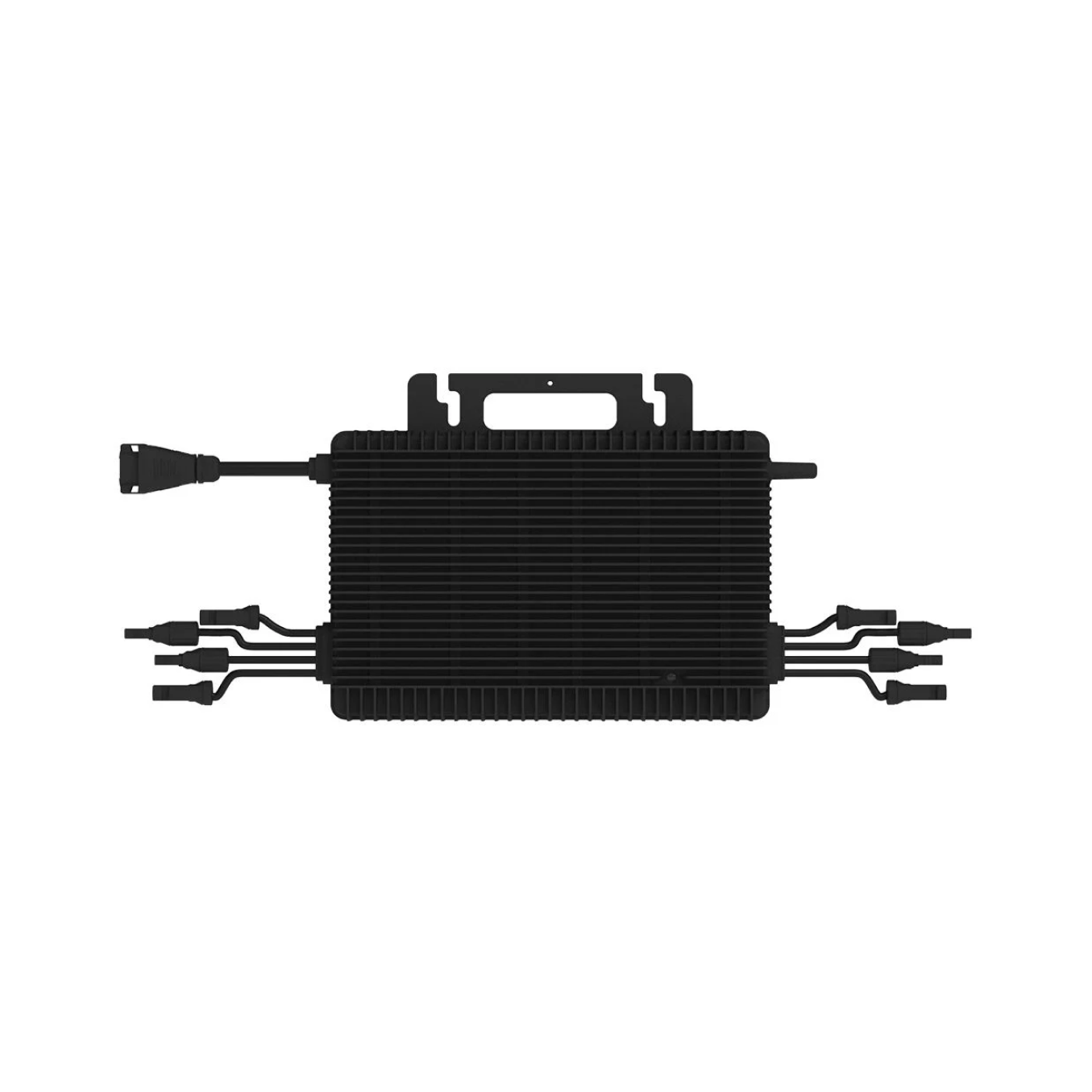

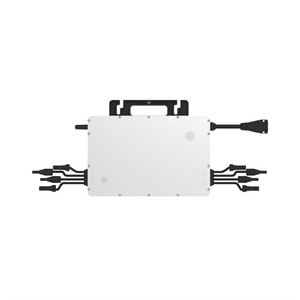

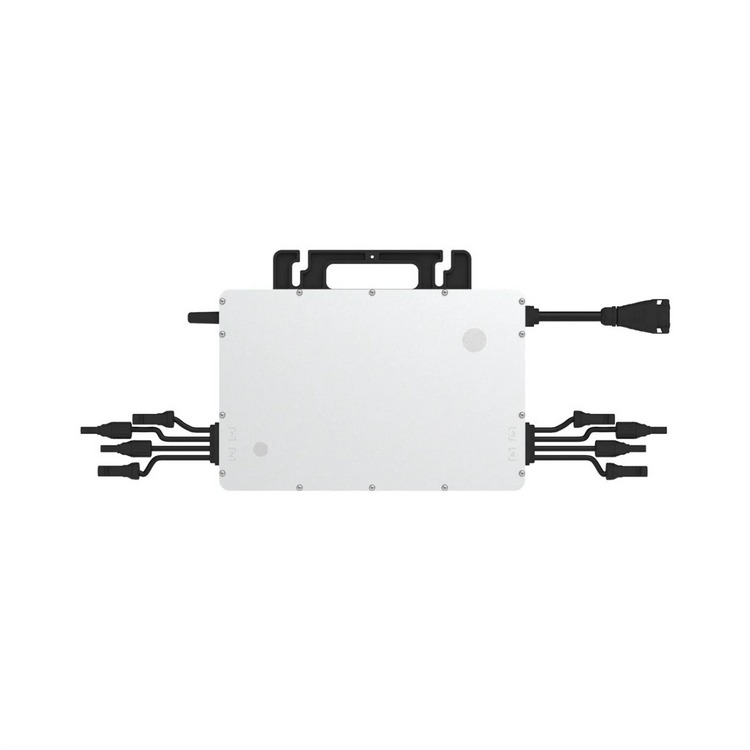

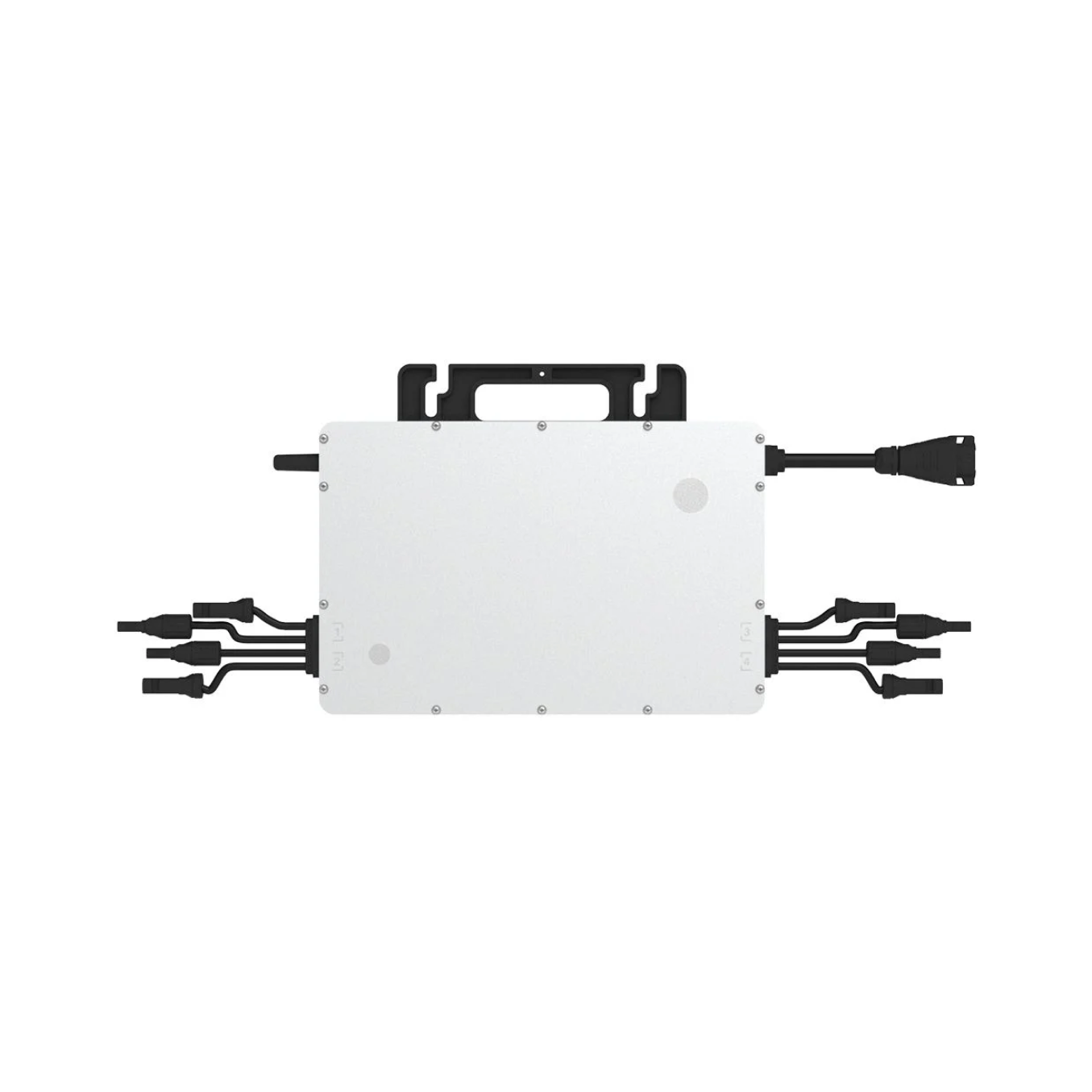

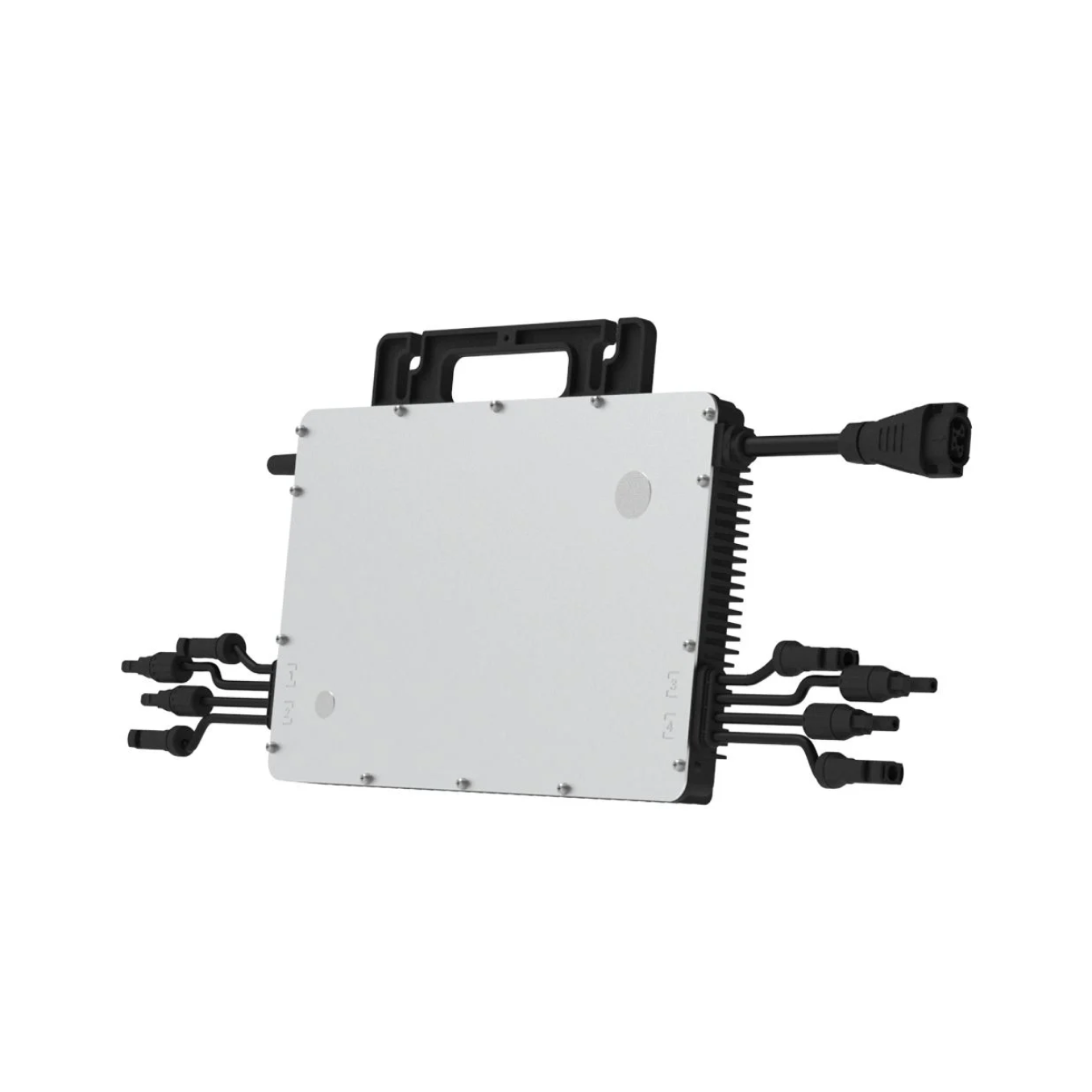

Hoymiles HMS-2000-4T Microinverter

The HMS-2000-4T (MPN: HMS-2000-4T) from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 4.7kg) is suitable for solar power production with up to four solar panels up to an output of 400W to 670W+ each. As with all other microinverters from Hoymiles, it is suitable for long operating hours and a wide range of PV module applications, as its starting voltage is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide.

Compared to its predecessor model from the HM series, the HMS-2000-4T offers more safety for rooftop solar power plants through quick shutdown and isolated transformer. The new sub-1G radio solution enables more stable communication with the Hoymiles gateway DTU.

Technical data

• Recommended module power: up to 400W - 670+W (per module)
• MPPT voltage range: 16-60V
• Switch-on voltage: 22V
• Maximum input voltage: 65V
• Maximum input current: 4*16A
• Maximum input short-circuit current: 4*20A
• Nominal output power: 2000VA
• Rated output current: 8.7A
• Nominal output voltage/range: 230V / 180-275V
• CEC peak efficiency: 96.50%
• Ambient temperature range: -40°C - +65°C
• Dimensions (WxHxD): 331 x 218 x 36.6 mm
• Weight: 4.7kg
• Housing classification: IP67

Properties

• Minimization of the effects of e.g. shading, dust or aging through MPPT
• High-quality energy generation with high MPPT accuracy
• Optimum system reliability
• Peak efficiency of 96.5%
• 12-year product warranty
• High level of safety thanks to integrated protective functions
• Easy installation
• Long service life
• Complies with EN50549-1:2019, VDE-AR-N 4105: 2018, VFR2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3
