Raspberry Pi 5, 8GB RAM

Raspberry Pi 5 with 8 GB RAM This advanced model impresses with two microHDMI ports that enable outstanding image output. Two USB 3.0 ports and two USB 2.0 ports are available for data transfer. The Raspberry Pi 5 is equipped with a modern USB-C port for the power supply. The dual-band WLAN, which supports both 2.4 GHz and 5 GHz, and Bluetooth 5/BLE ensure outstanding networking capabilities. The Ethernet connection enables rapid data transfers at speeds of up to 1000 Mb/s. The Pi 5 also offers the option of being supplied with power via PoE (Power over Ethernet). All other specifications and features are consistent with those of the Raspberry Pi 4, ensuring continuity and reliability in the Raspberry Pi range.

Accessories for the Raspberry Pi 5
To exploit the full potential of your Raspberry Pi 5, we recommend the following accessories:

• A microSD card, ideally already equipped with an operating system.

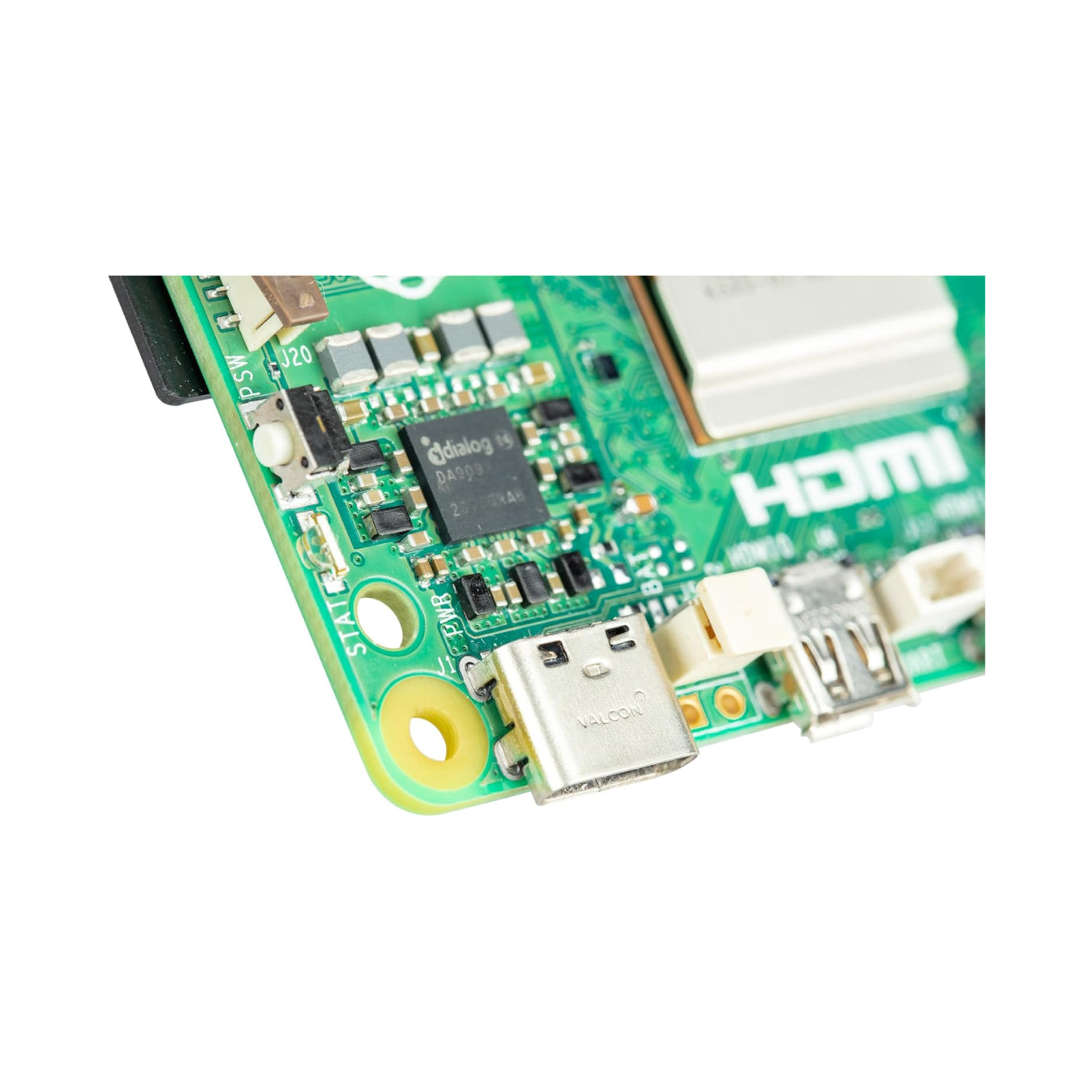

• A stable power supply via USB-C, preferably 5V / 5A DC or 27W.
• A monitor and a suitable HDMI cable.
• Of course, a keyboard and mouse for easy operation.

Product features Raspberry Pi 5

• 2.4GHz Quad-Core 64-bit Arm Cortex-A76 CPU: The power that will amaze you.
• VideoCore VII GPU: Enjoy state-of-the-art graphics with support for OpenGL ES 3.1 and Vulkan 1.2.
• Dual 4Kp60 HDMI output: For razor-sharp displays with HDR support.
• Up to 8GB LPDDR4X-4267 SDRAM: So that you always have enough RAM available.
• Dual-band 802.11ac Wi-Fi and Bluetooth 5.0/BLE: For the best connections at all times.

The Raspberry Pi 5 offers an impressive variety of connection options

• 2 × USB 3.0 and 2 × USB 2.0 ports: For all your peripheral devices

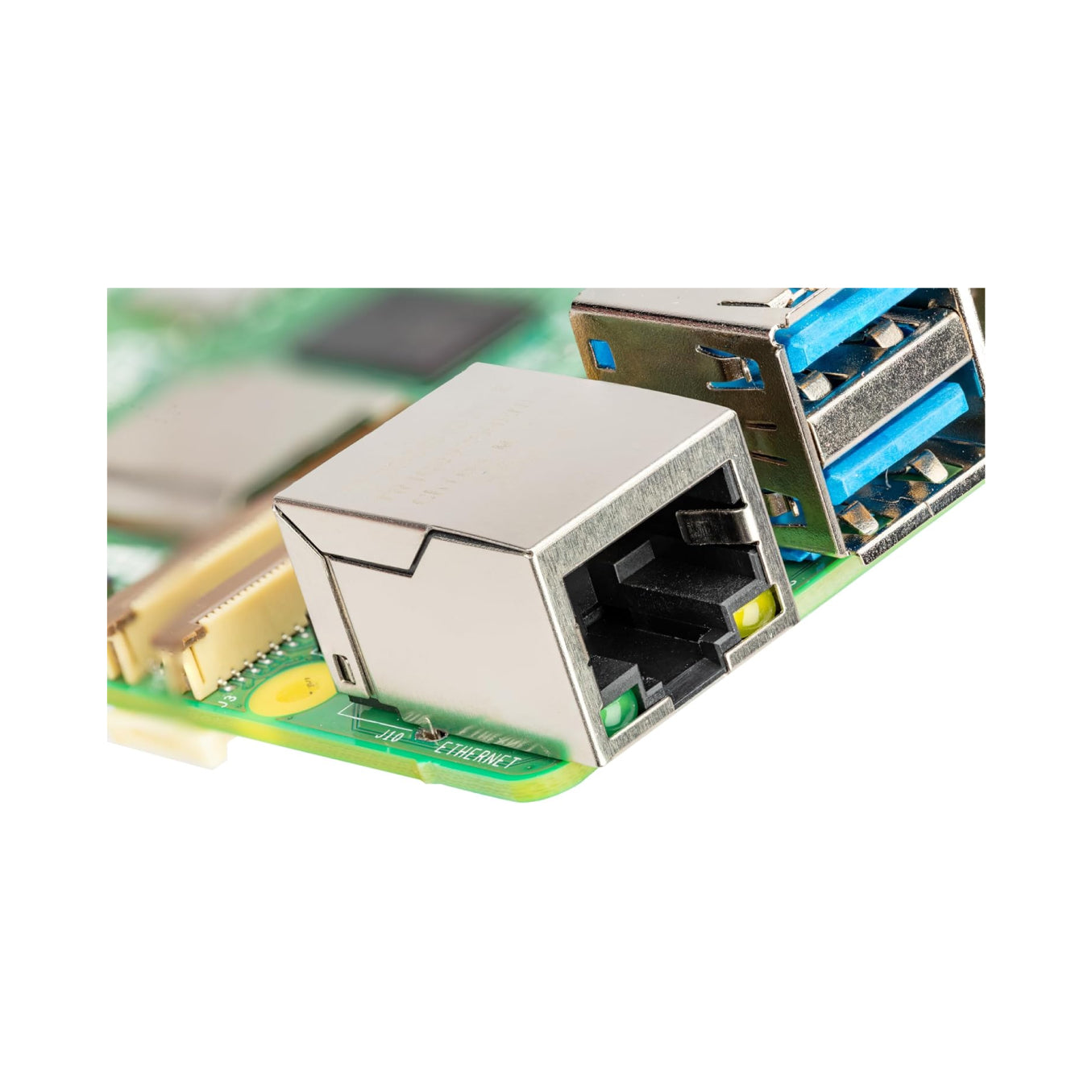

• Gigabit Ethernet: Fast and stable network connections, with up to 1000Mb/s
• Dual 4Kp60 HDMI: For simultaneous, brilliant screen output
• And many more, from microSD card slots to GPIO headers
• 2 × 4-lane MIPI camera / display port
• PCIe2.0 for future HATs
• 40 GPIO pin headers: to realize your projects

FAQ

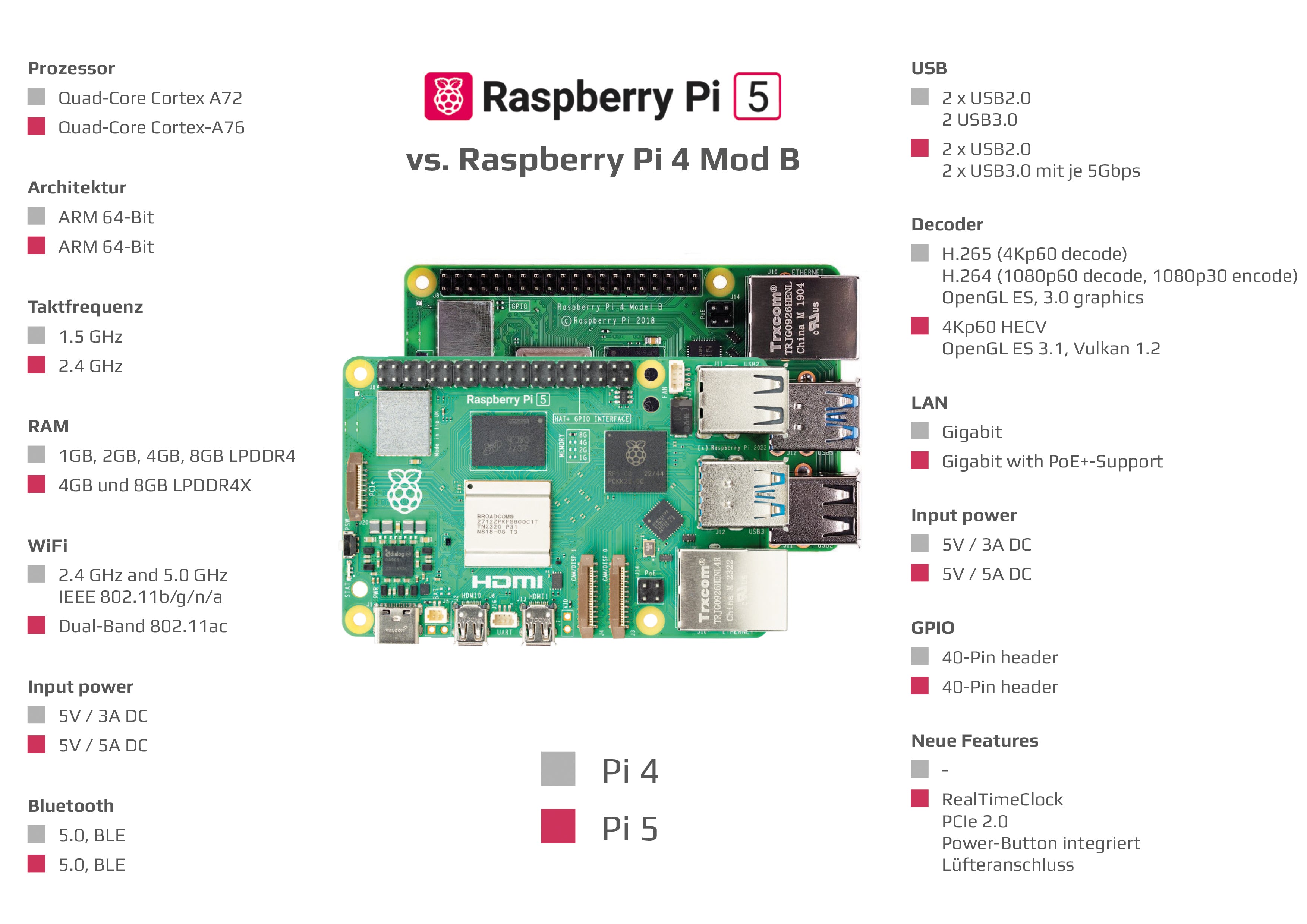

What is the main difference between the Raspberry Pi 5 and the Raspberry Pi 4?

• The Raspberry Pi 5 offers improved CPU performance, enhanced graphics options, more RAM and a variety of improved connectivity options and long-awaited features such as RTC or PCIe 2.0, compared to the Raspberry Pi 4.

Does the Raspberry Pi 5 support 4K resolution?

• Yes, the Raspberry Pi 5 supports dual 4K displays via its HDMI ports.

Which operating systems are compatible with the Raspberry Pi 5?

• The Raspberry Pi 5 supports a wide range of operating systems, including various Linux distributions and Windows IoT Core

How much RAM is available in the Raspberry Pi 5?

• Models with 4 GB and 8 GB RAM are available at launch.

Does the Raspberry Pi 5 support PoE (Power over Ethernet)?

• Yes, with an additional PoE+ HAT the Raspberry Pi 5 can be powered via Ethernet. Separate hardware that supports this in your network is required.

What connections does the Raspberry Pi 5 offer?

• The Raspberry Pi 5 has USB 3.0 and 2.0 ports, Gigabit Ethernet, dual 4K HDMI, microSD card slot, 2 MIPI camera / display ports, PCIe 2.0 and the familiar 40-pin GPIO header.

What safety precautions should I take when using the Raspberry Pi 5?

• The Raspberry Pi 5 should be operated in a well-ventilated area and should not be placed near water sources. It should be firmly secured or placed on a stable, flat, non-conductive surface.
