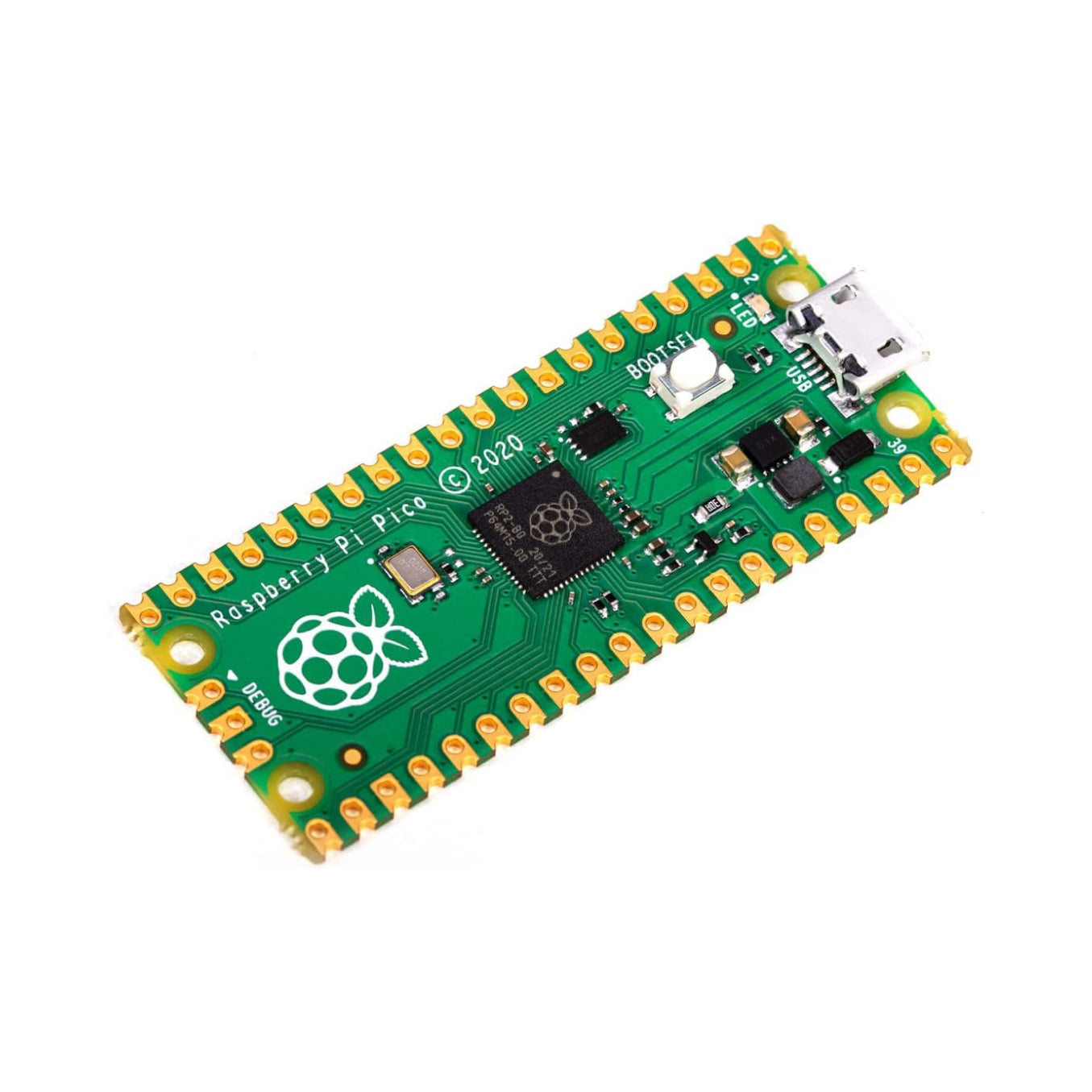

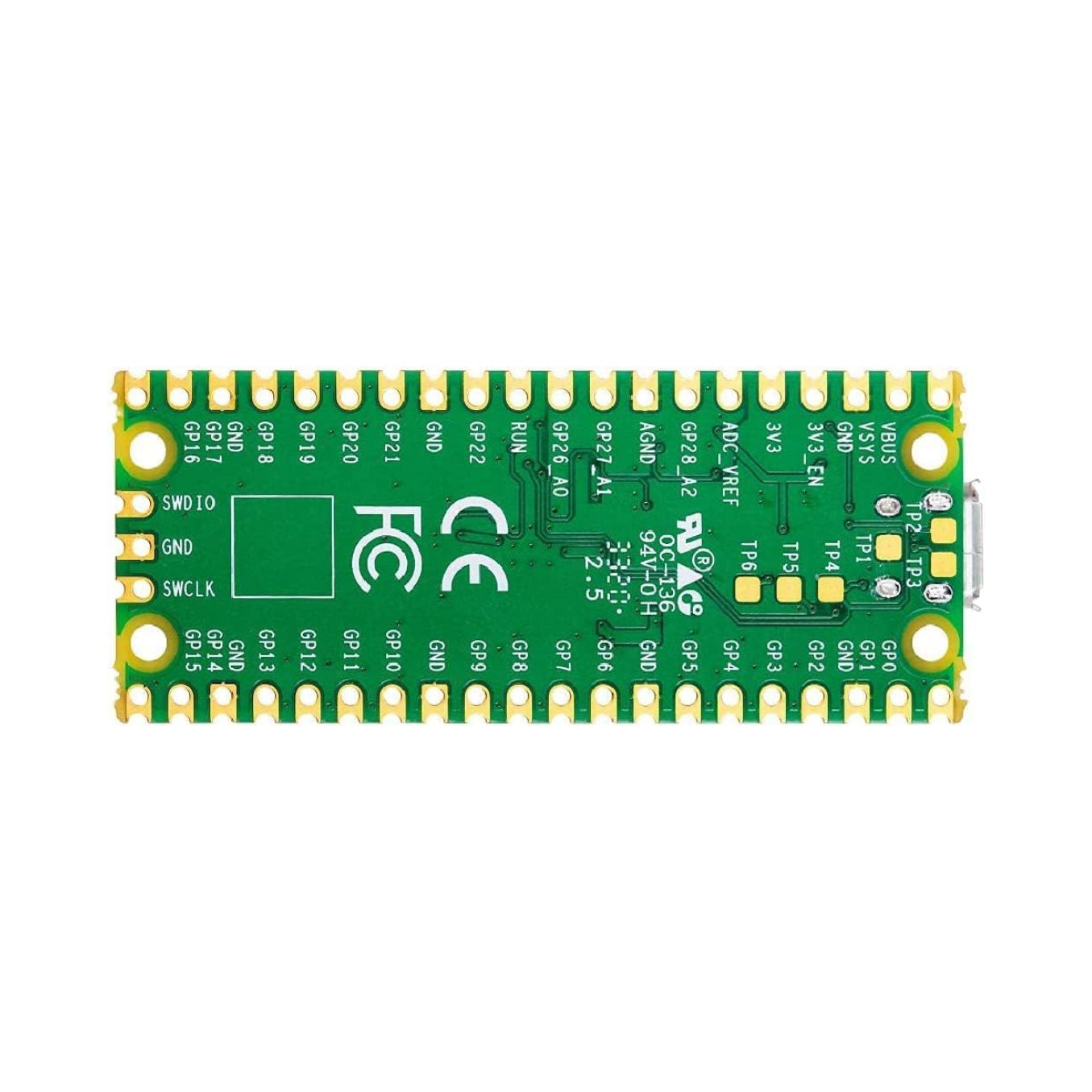

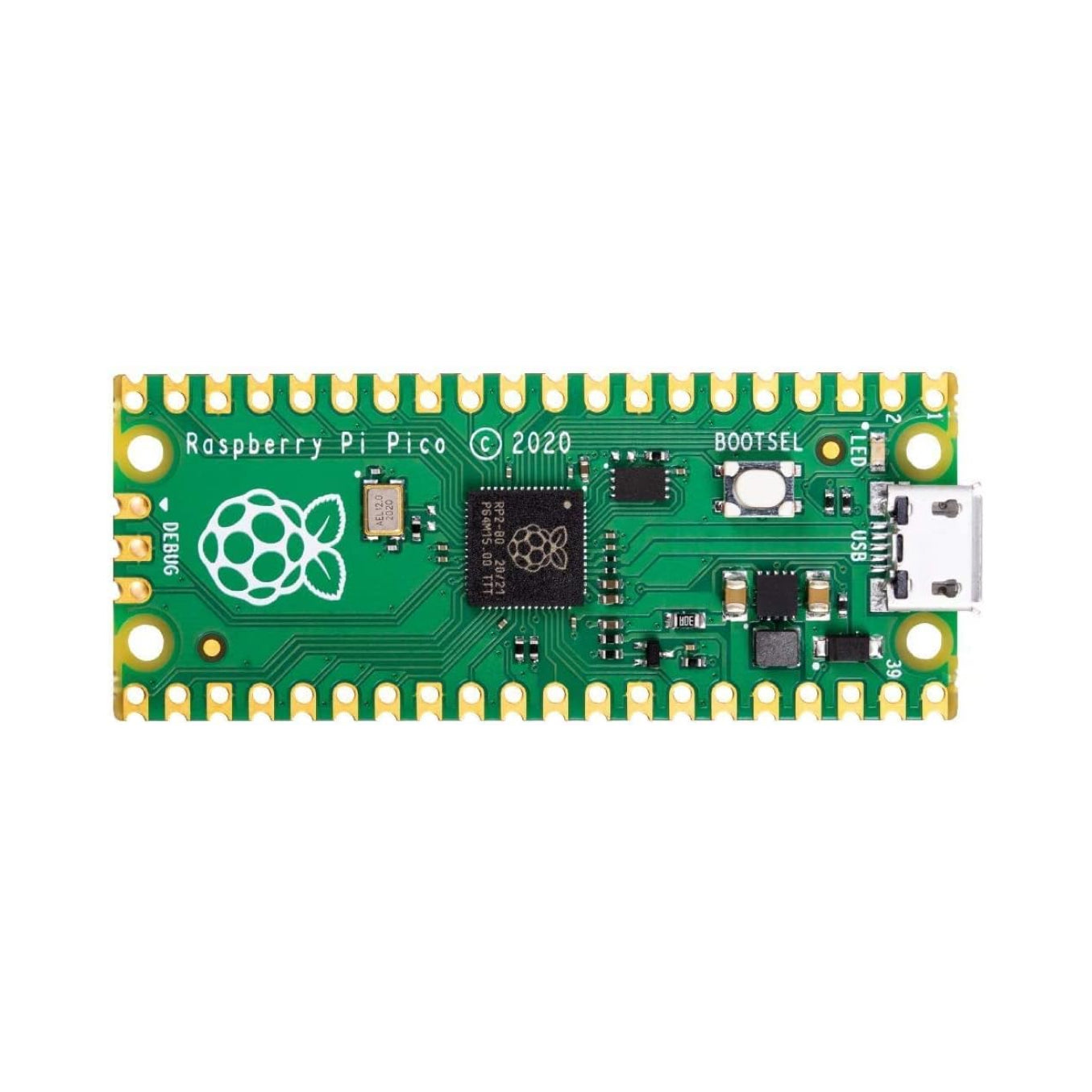

Raspberry Pi Pico

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces.

The most important features are:

• RP2040 microcontroller chip, developed by Raspberry Pi in the UK
• Dual-core ARM Cortex M0+ processor, flexible clock up to 133 MHz
• 264KB SRAM and 2MB on-board flash memory
• Module enables direct soldering on carrier boards
• USB 1.1 host and device support
• Power-saving sleep and dormant mode
• Drag & drop programming with mass storage via USB
• 26x multifunctional GPIO pins
• 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x controllable PWM channels
• Precise clock and timer on-chip
• Temperature sensor
• Accelerated floating point libraries on-chip
• 8x programmable I/O state machines (PIO) for customized peripheral support

For more information on the Raspberry Pi Pico and how to get started, visit Raspberry
