Raspberry Pi Zero 2 W

The Raspberry Pi Zero 2 W is the long-awaited successor to the popular Raspberry Zero W - with many upgrades, but in the same form factor!

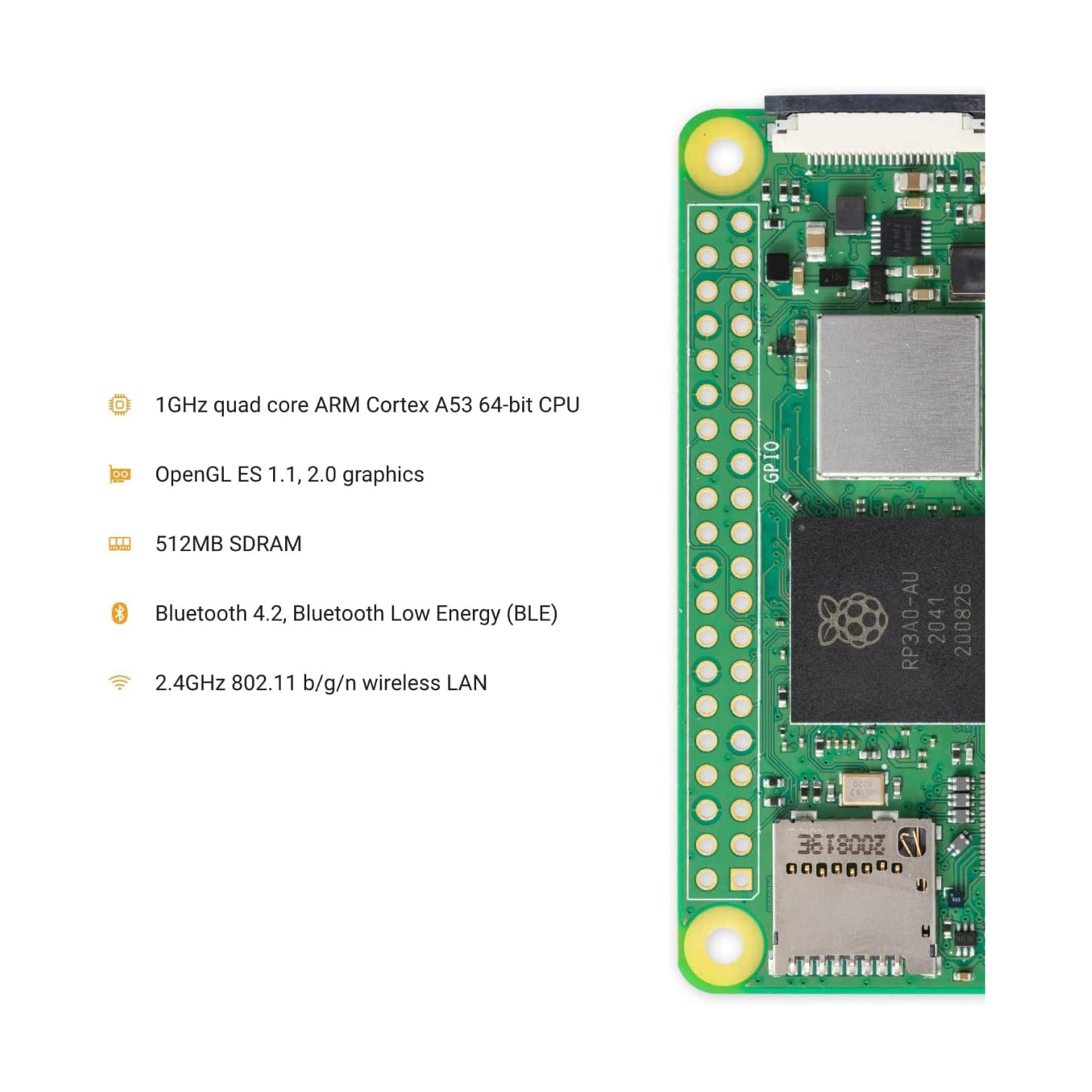

It has a quad-core 64-bit Arm Cortex-A53 CPU clocked at 1GHz. At the heart of the board is a Raspberry Pi RP3A0 System-in-Package (SiP), which integrates a Broadcom BCM2710A1 chip with 512 MB LPDDR2 SDRAM. The updated processor provides the Pi with 40% more single-thread performance and five times more multi-thread performance than the original single-core Raspberry Pi Zero.

• The Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE) and modular compliance certification.

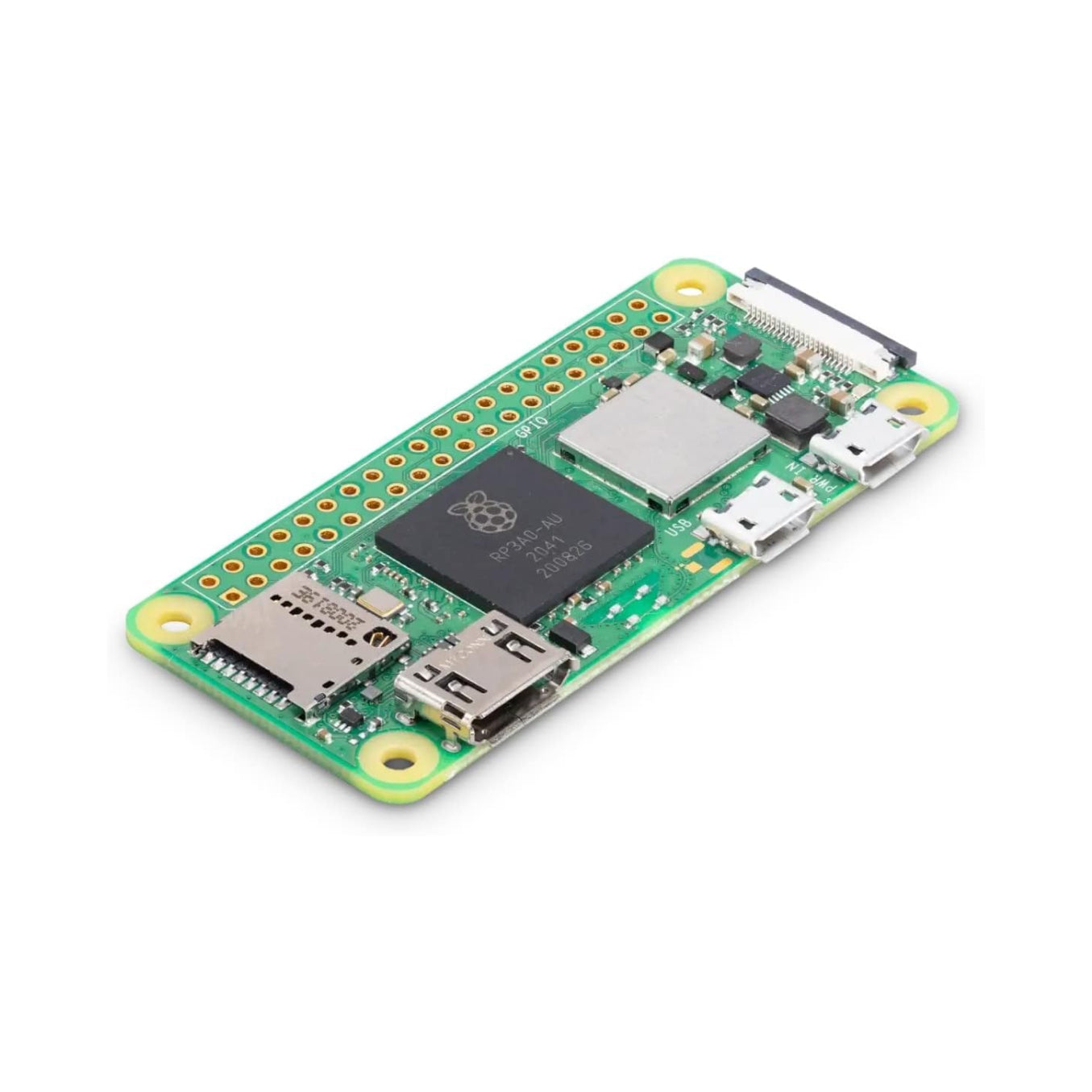

• The board has a microSD card slot, a CSI-2 camera port, a USB On-The-Go (OTG) port and a free area for a HAT-compatible 40-pin GPIO connector. Power is supplied via a micro USB socket. Video output is via a mini-HDMI connection. A composite video output can easily be made available via test points if required.

As the Raspberry Pi Zero 2 W has the same size and connector positioning as previous Zero models, existing housings can still be used.

Technical specifications

• BCM 2710A1 64-bit ARM Cortex-A53 Quad-Core CPU @ 1GHz
• 512MB RAM
• On-board Wireless LAN - 2.4 GHz 802.11 b/g/n
• On-board Bluetooth 4.2 / Bluetooth Low-energy (BLE)
• micro-SD slot
• mini-HDMI type C connector
• 1x micro-B USB for data
• 1x micro-B USB for power supply
• CSI Camera Connector (requires a separately available adapter cable)
• Composite video and reset pins via solder points
• Unpopulated 40-pin GPIO connector
• Compatible with existing pHAT/HAT add-on boards
• Dimensions: 65 x 30 x 5mm
